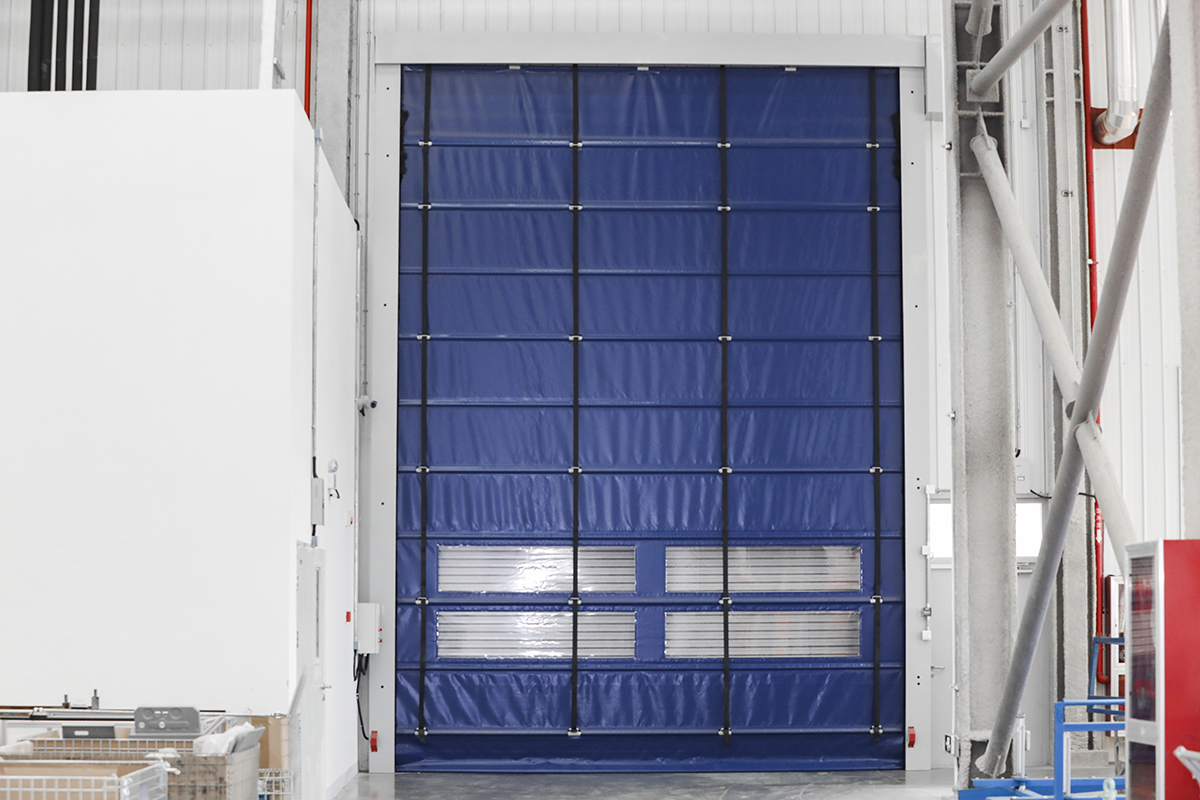

HSR-SPB High Speed Stacking Door
Strong wind resistance, suitable for large door openings; Typical application industries: machinery manufacturing, underground garage, large logistics channels and other places.
Technical description:
●The door size:
Minimum size W2000/H2000/
Maximum size W8000/H9000
●Door opening/closing speed:
Minimum closing speed 0.8m/s
Maximum opening speed 1.2m/s
●Door panel material:
0.8mm PVC curtain、 yellow, orange, blue optional
●Door Curtain window:
1.2mm transparent window (optional)
●Track seal:
Brush bar
●Wind resistance:
700 pa
●Motor cover:
Standard con?guration
●Scroll cover:
Standard con?guration
●Installation location:
External door
●Combination door frame:
Optional
●Open configuration (optional) :
Remote control/3-key button/ geomagnetic/radar/pull-cord switch
●Service life:
More than 1 million times
●Operating environment temperature:
- 10 ℃ ~ + 40 ℃
Product features:
The belt high speed door has good wind resistance performance, for which the horizontal spaced metal wind resistant column is used. Different speci?cations of pro?les are selected according to the width of the door body, and even large sizes have high wind resistance.
It is suitable to be used as external doors for logistics channels with large-sized openings and high windproof requirements.
Typical application industries: machinery manufacturing, under-ground garages, large-scale logistics channels, etc.
